China made Pani puri snack production line/3D pellet snack chips machine

I. Description

China made Pani puri snack production line/3D pellet snack chips machine   h as own competitive price and which  is designed for making the pellets, chips, fried snacks by single screw extruder machine. Raw materials can be potato starch, corn starch, wheat flour, cassava starch etc. Through the extruder cooking, the snacks can be shaped in many different shapes, like shell, screw, spiral, square tube, circle tube, and so on. After drying and frying, flavoring with the flavor powder can get delicious snacks food.
Also, by changing the shaping machine we can produce 3D pellet, waved chips, potato chips, shrimp chips and so on.

Condition	New
Brand Name	LT
Model Number	LT100,FT75
Application	Potato chips machine/3D pellet machine
Raw Materials	Potato Starch, Corn Starch , Wheat Flour, Cassava Starch etc
Voltage	380V/50HZ 220V/50HZ
Powder	55kw for ertruder 256kw for entire line
Weight	3000-50000kg
Dimension	Max: 33000x1300x2300mm
Certification	CE BV ISO9001
Warranty	1year
After sales service provided	Engineers available to service machinery overseas
Motor	Simens
Inverter	Delta ABB LG,FUJI OMRON
Delivery Details	Within 20 Days
Specification	1.capacity: 80-100kg/h,250-300kg/h 2.CE BV ISO9001
Machines Materials	All the machines are made by food grade stainless steel

II.Technical Parameters

Model	Installed Power	Power Consumption	Output	Size((L×W× H))
LT100	195kw	117kw	80-100kg/h	30000x1300x2300mm
FT75	256kw	153kw	250-300kg/h	33000×1300×2300mm

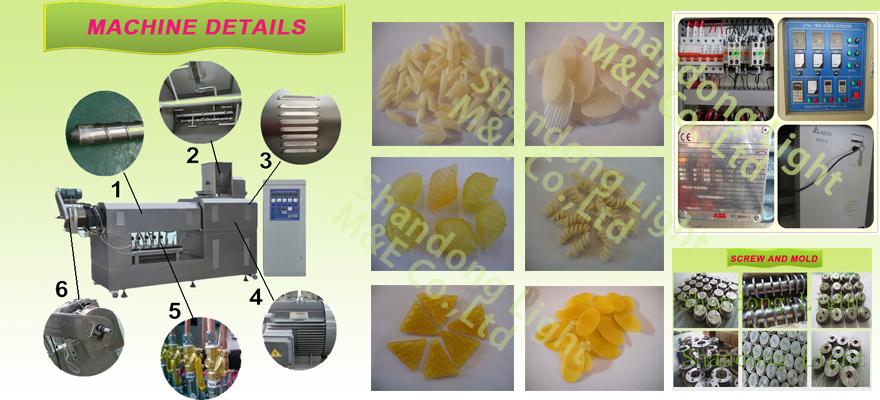

III.Machine Details

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.

5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

IV.FAQ

1.How is you factory extrusion experience ?

Reply: 15 years experience on extrusion.Corporated with Japan NP 6 years. Leading supplier in Jinan city

2 Where is your factory?

Reply: Jinan city, Shandong Province, China. 5 mins from factory to airport,Driver pick up service provided

3.If ours country’s power supply is not 3ph 380v 50hz,different from China,any solution?

Reply:Yes, Voltage can be customized follow customer’s country voltage like

3ph 380v 60hz;3ph 415v 50hz,3ph 440v 60hz,3ph 220v 60hz etc.

4. What is the brand of the Motor? Electric components?

Reply:

Main motor, FUJI,LG, Omron JP brand, Delta inverter as standard list.

Can customized follow Mitsubishi, LG, Schneider,ABB etc brand.

5. What kind of fuels we can choose during our production?

Reply: Electric/Natural Gas/LPG/Diesel for choice

6. Could we visit your factory to check the machine carefully and closely?

Reply:

Highly appreciated factory visiting,will provide machine testing service,face-face discussing, turnkey project design solution

V.Why Choose Us

1.Provide production formula, installation, debugging, operator training services. Professional engineers

provide machine installation, training, enterprise employees, solve problem, long time for machine maintenance.

2.Professional machine maintenance and services. The warranty time of machine and parts is 1 year.

Long time maintenance service for spare parts, components.

3.Perfect product quality tracking system after sale, establish a complete product quality tracking report

for every customer, professional analyze, timely feedback.

4.To design and supply non-standard products according to the customer request.

5.For the sake of the global customer, we provide equipment and technology, raw material, packing, etc.

Comprehensive consulting service, let customer worry-free truly.
